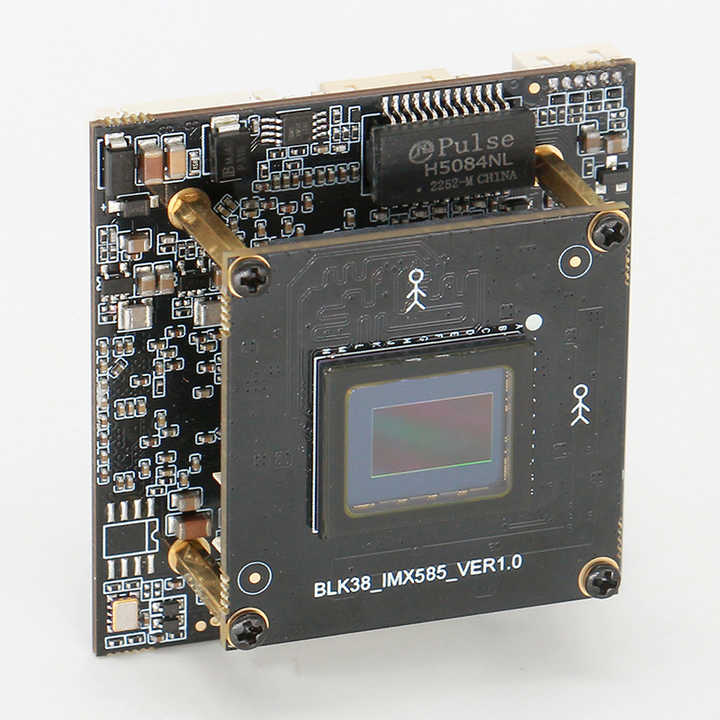

STARVIS 2 1/1.2" IMX585 60fps 4K Camera Module Ultra Low Light High Sensitivity WDR SSD3403 CCTV 8MP IP Network Security Camera
Released on2024年10月21 05:29
250 person views
Suppliers
Shenzhen Wisdom Technology Co., Ltd.
Attributes
Place of OriginGuangdong, China
Brand NameSMTSEC
Model NumberSIP-K585U
Mounting TypeNormal
DescriptionSTARVIS 2
ApplicationCCTV Security
SeriesK
FeaturesUltra Low Light High Sensitivity
Size / Dimension38X38+50X50mm
Camera TypeSTARVIS 2 Sensor IP Camera Module
Image Sensor1/1.2" SONY IMX585 STARVIS 2
DSPSSD3403
Effective Pixels3856*2180 (H * V), approx. 8.41 megapixels
Min. IlluminationColor: 0.0001Lux F1.2(AGC ON), B/W: 0Lux(IR ON)
WDR≥120dB WDR
USB interface1 USB2.0 interface, support extended 4G/WiFi function
Video CompressionH.265+/H.265/H.264
Frame Rate1-60fps
Power Consumption<3W
Selling Units:Single item
Single package size:19X12X10 cm
Single gross weight:0.500 kg
ProductDescription
STARVIS21/1.2"IMX58560fps4KCameraModuleUltraLowLightHighSensitivityWDRSSD3403CCTV8MPIPNetworkSecurityCamera

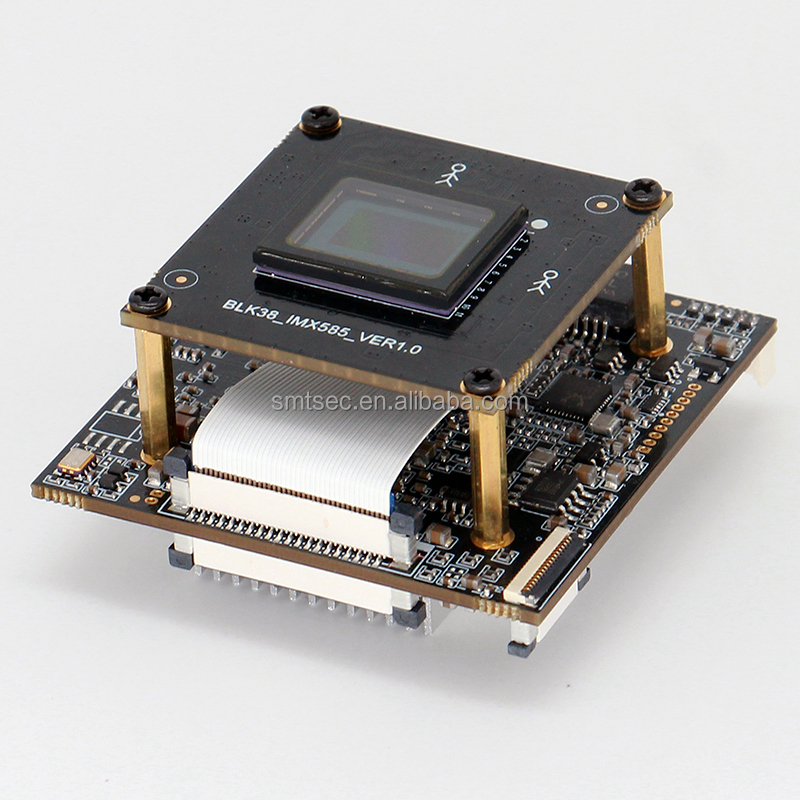

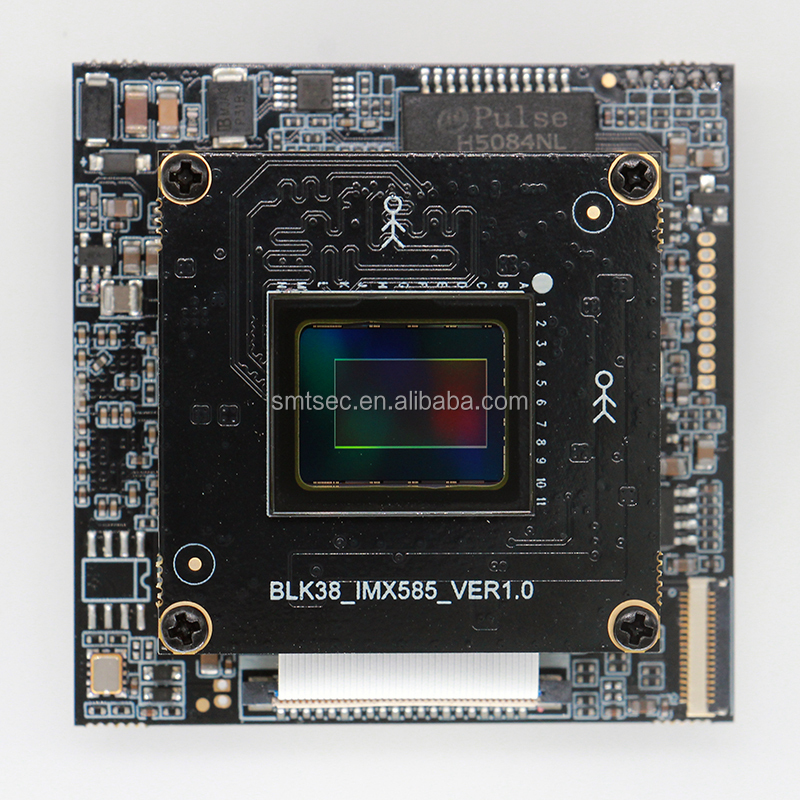

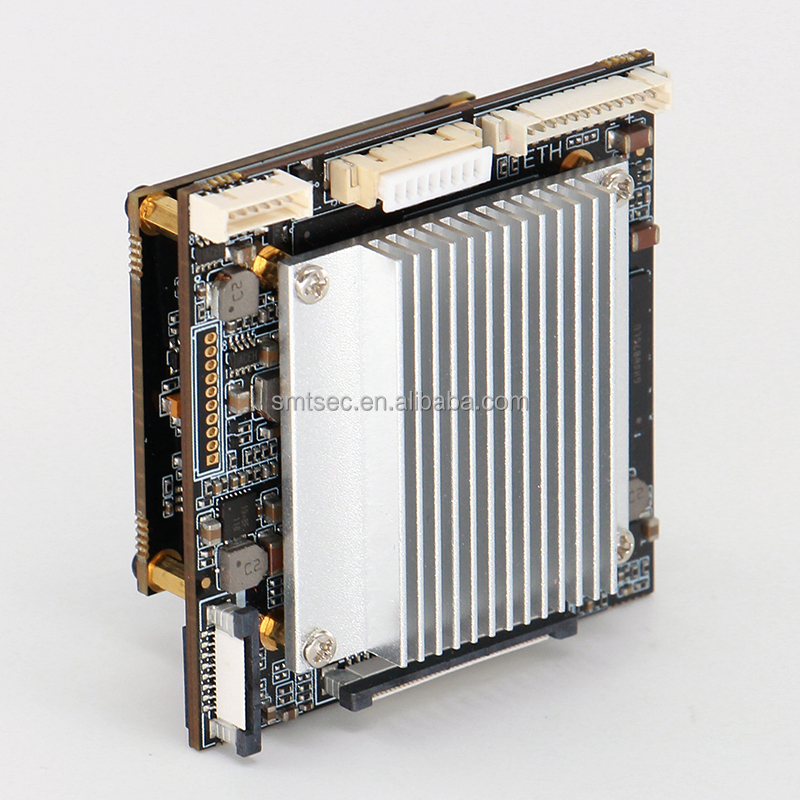

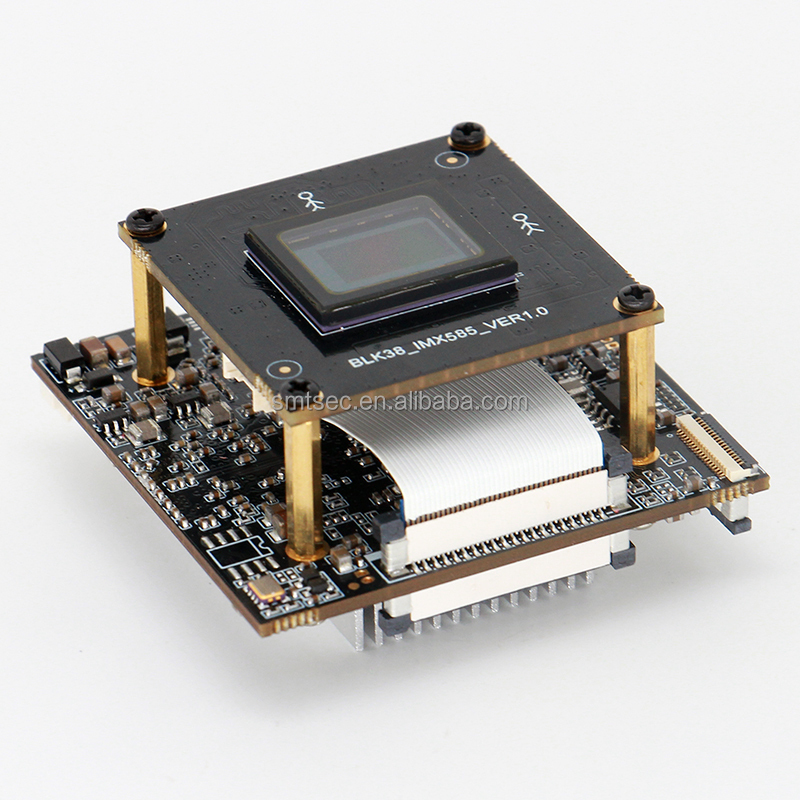

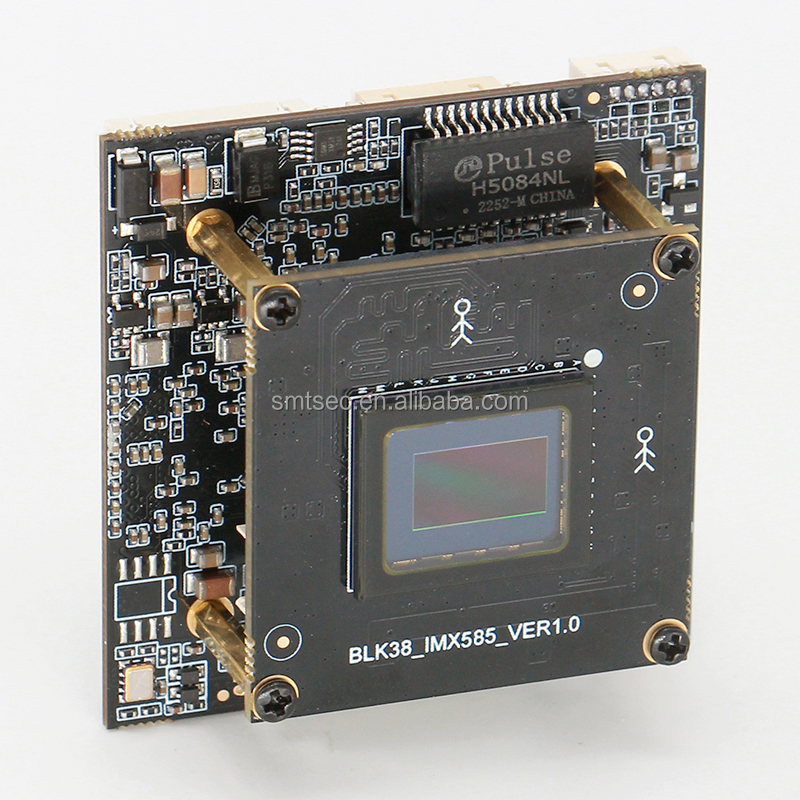

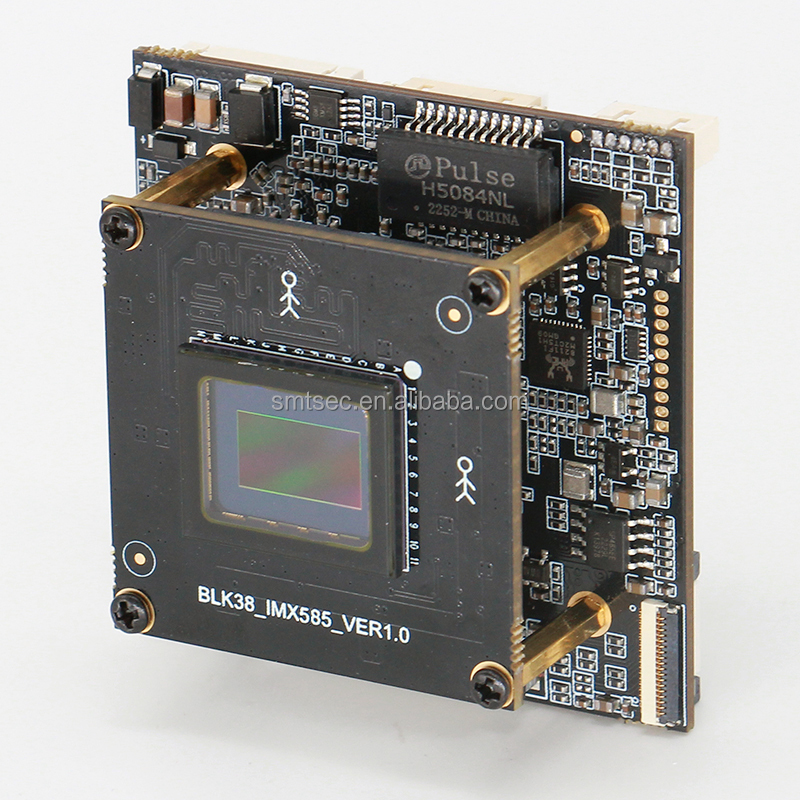

Model:SIP-K585U
>IMX585+SSD3403
>1/1.2"SONYCMOS,8.0mp60fps
>H.265+/H.265/H.264/MJPEG
>DWDR,3DNR,LensCorrection,WB
>ONVIF,API,SDK,GB28181,CGI,RTSP
>Supportsthreestreamsandmultipleresolutions
>SupportforSMARTLEDs
>Adjustableshutter,image,menu,etc.
>Supportaudio,USB,UART,Reset.
>SupportRS485,AutoIRISLens
>Supportcharacteroverlay
>SupportGoogleChrome
>Mobilephonemonitoring(optional);
>Supportcustomdevelopment
>HDMIOutput(optional)
ModelSIP-K585U
CameraTypeH.2654K8.0mpSuperStarlightIPCameraModule
Camera
ImageSensor1/1.2"SONYIMX585CMOSSensorSTARVIS2
EffectivePixels3840(H)×2160(V)approx.8.29Mpixel
DSPSSD3403(GK7608V100/SS928V100),Quad-coreARMCortexA551.2GHz,4TopsINT8
Min.IlluminationColor:0.0001LuxF1.2(AGCON),B/W:0Lux(IRON)
S/NRatio≥50dB(AGCOFF)
LensMountCMount
Ir-CutSupport
Day/NightColor/B&W/Auto
SmartIR/whitelightSupport
LightmodeLowLevel/HighLevel/PWM
WDR≥120dBWDR
3DNRSupport
TonalAvailabletoset
BrightnessAvailabletoset
SharpnessAvailabletoset
ContrastAvailabletoset
SaturationAvailabletoset
GammaAvailabletoset
BLCAvailabletoset
MirrorimageOpen/Close
FlipOpen/Close
HLCOpen/Close
VideoFormatPAL/NTSC
LensCorrectionOpen/Close
DehazeOpen/Close
ExposureStrategyHighlightPriority/LowLightPriority/Auto
ExposureModeAuto/Manual
AutoExposureTimeAuto/Manual(1/12s-1/8000s)
SlowShutterOpen/Close
GainModeAuto/Manual
WhiteBalanceModeAuto/Manual/WhiteBalanceSceneAdjustable/WhiteBalanceStyleAdjustable
OSDSettingsCodestreaminformation/displayweek/displaytime/channeltitle/watermarkoverlay
OSDDisplayColor/size/positionadjustable
Video/Audio
VideoCodingH.265+/H.265/H.264
EncodingSchemeBaseline/MainProfile/HighProfile
ResolutionMainstream:3840X2160(1-60fps),2880X1620,2560X1440,1920X1080(1-60fps)
SubStream/ThreeStreams:D1,VGA,(1-60fps)
FrameRate1-60fps
BitRate32Kbps-16Mbps
BitrateTypeSupportVBR/CBR
AudioCompressionG.711U/G.711A/G.726/AAC
AudioInputModeMicIn/LineIn
AudioInputGainAvailableToSet
AudioOutputGainAvailableToSet
EchoOpen/Close
Network
DataStorageVideoRecord,PictureFormat
TriggerManual,automatic(motiondetection,alarm,time)
AlarmDataTransmissionWebsocket,FTP,Browser
NetworkProtocolHTTP,HTTPS,TCP/IP,UDP,RTP,FTP,RTCP,RTSP,NTP,DHCP,DNS,DDNS,SNMP,SSL/TLS,UPNP,PPPOE,etc.
TransferProtocolONVIF/GB28181/SDK/CGI
NumberOfClientVisitsSupport8UsersLoginAtTheSameTime
BrowserIE/Edge/Chrome/Firefox
NetworkLostRecordingSupports
MotionDetectionSupports4Area
HideDetectSupports4Area

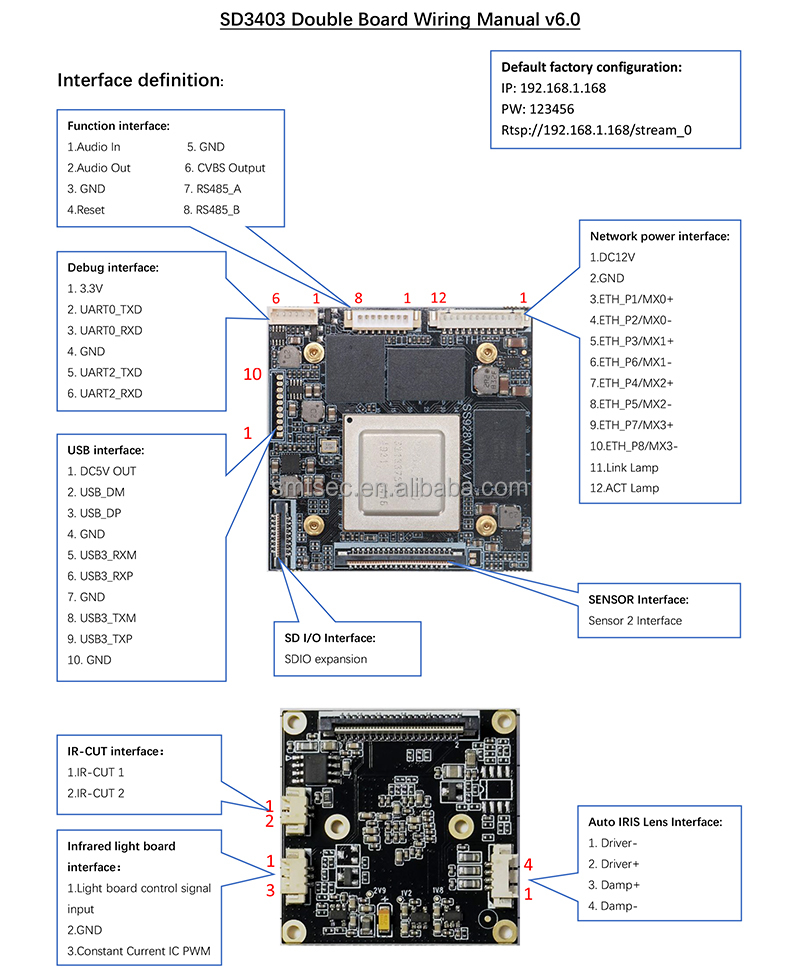

Interface
NetworkInterface100M/1000MAdaptiveEthernetPort
AudioInput1ChAudioInput
AudioOutput1ChAudioOutput
USBinterface1USB2.0interface(5Vpowersupply),supportextended4G/WiFifunction
Uartport1Ch
ResetinterfaceSupport
RS4851Ch
AutoIRISLensSupport
SmartPhoneiPhone,iPad,Android
TFstoragefunctionMaximumSupport512G
CVBSOutput1CHCVBSOutput
HDMIOutput1CHHDMIOutput
WifiSupport802.11bgn
4GFunctionSupport4GCat.1,rateupto10Mbps
POEIEEE802.3af/at
SmartfunctionSupporthumanoiddetection/areaintrusion/flamedetection/electricvehicledetection/licenseplatedetection
FunctioncustomizationSupportfunctioncustomizationdevelopment,platformprotocoldocking,
algorithmcustomizationtransplantation,hardwareandsoftwaredevelopment
General
PowerSupplyDC12V1A
PowerConsumption<3W
WorkingEnvironment-20°C~+60°C,LessThan90%Rh
ProductSize(L/W/H)38X38+50X50mm
NetWeight0.1Kg
4kindsTFBoard(Optional)
1.KTF-S
ExpansionTFCard,
Support256GTFCard
ExpansionviaSDIOinterface
SupportKseriesmodulefunctionexpansion

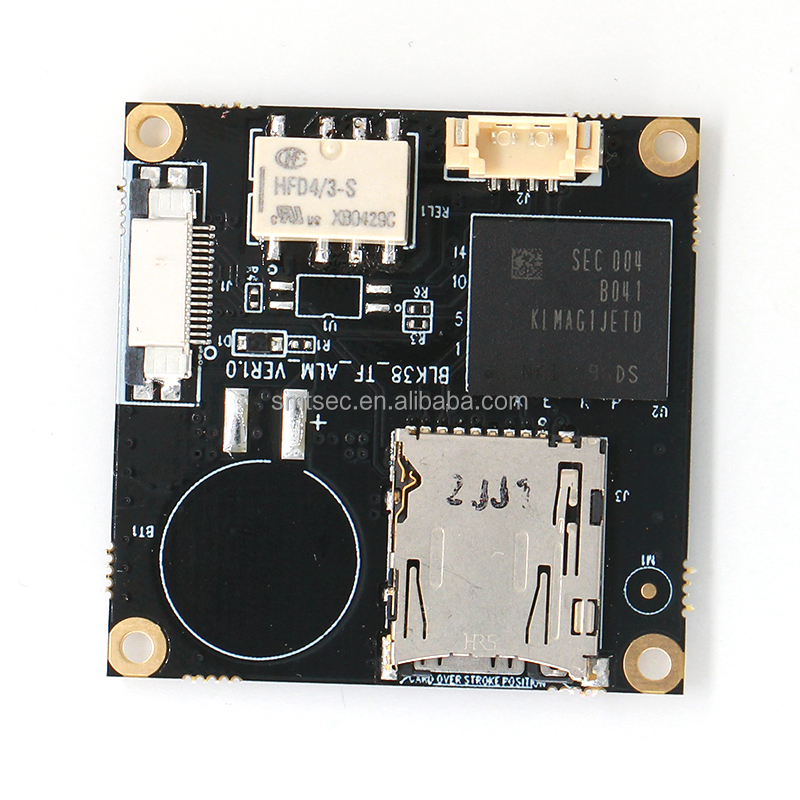

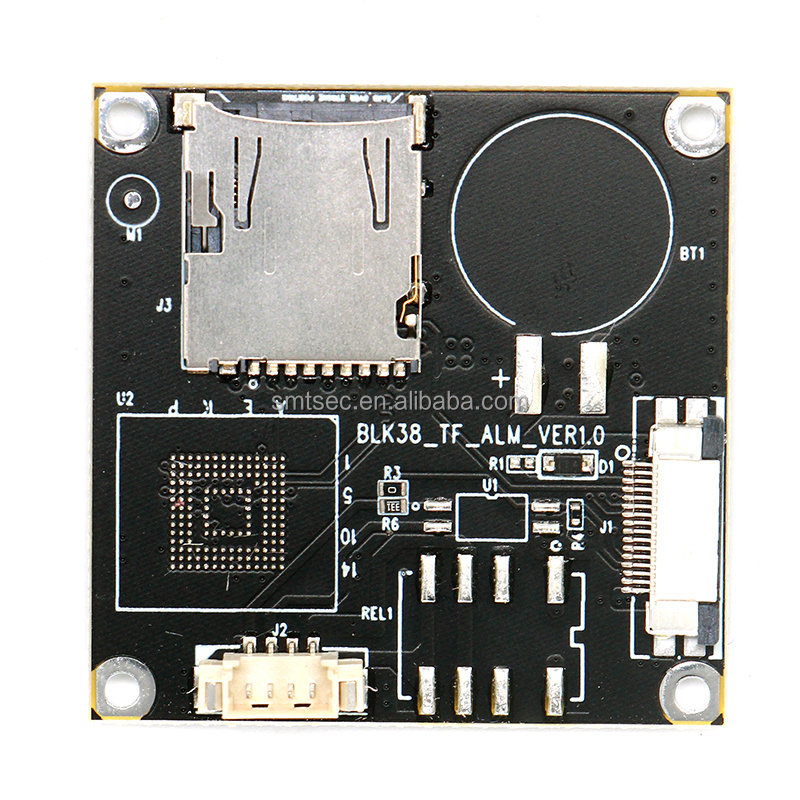

2.KTF-SA
ExpansionTFCard,
Support256GTFCard
Supportalarminput/output
ExpansionviaSDIOinterface
SupportKseriesmodulefunctionexpansion

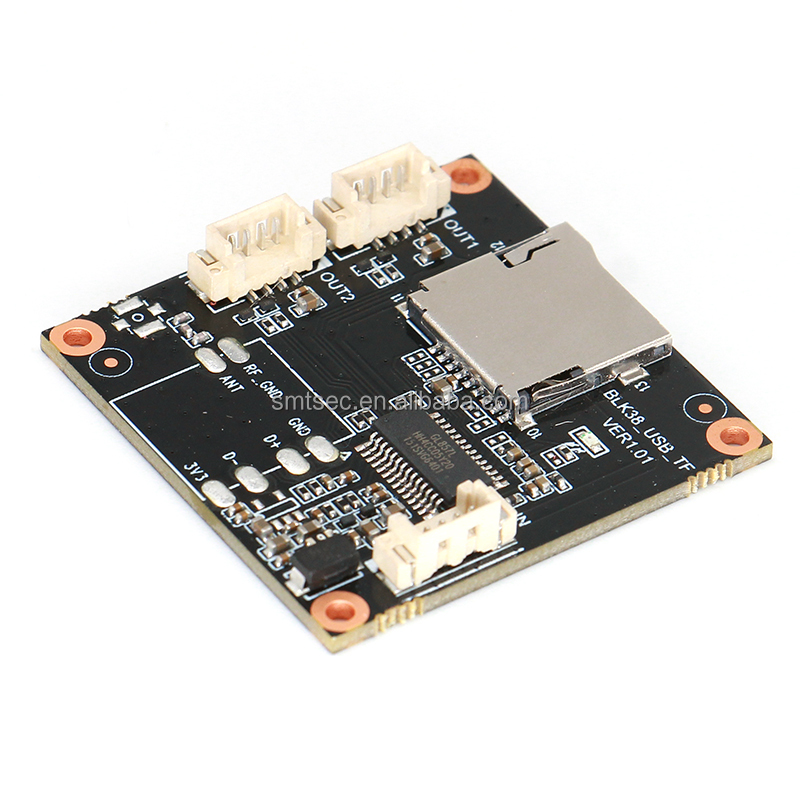

3.KTF-U
ExpansionTFCard,
Support256GTFCard
SupportUSB*2
ExpansionviaUSBinterface
SupportKseriesmodulefunctionexpansion

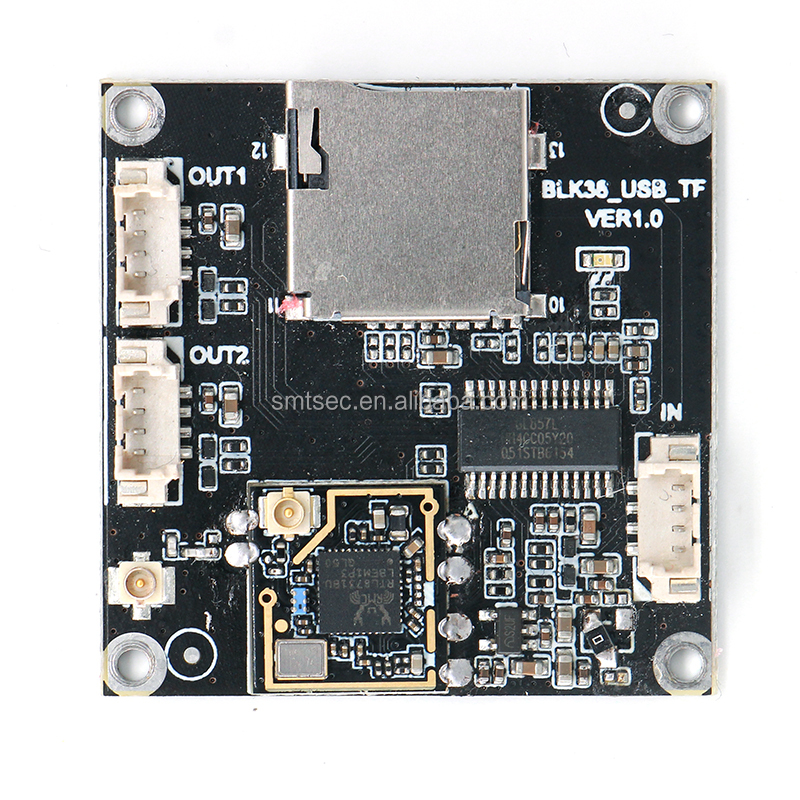

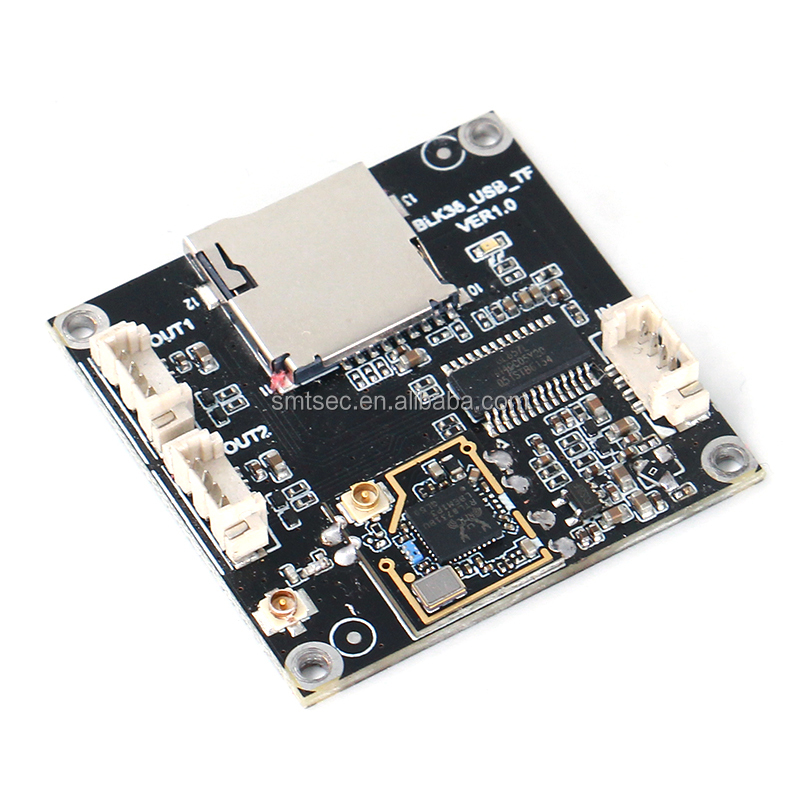

4.KTF-UW
ExpansionTFCard
Support256GTFCard
SupportWifi
SupportUSB*2
ExpansionviaUSBinterface
SupportKseriesmodulefunctionexpansion

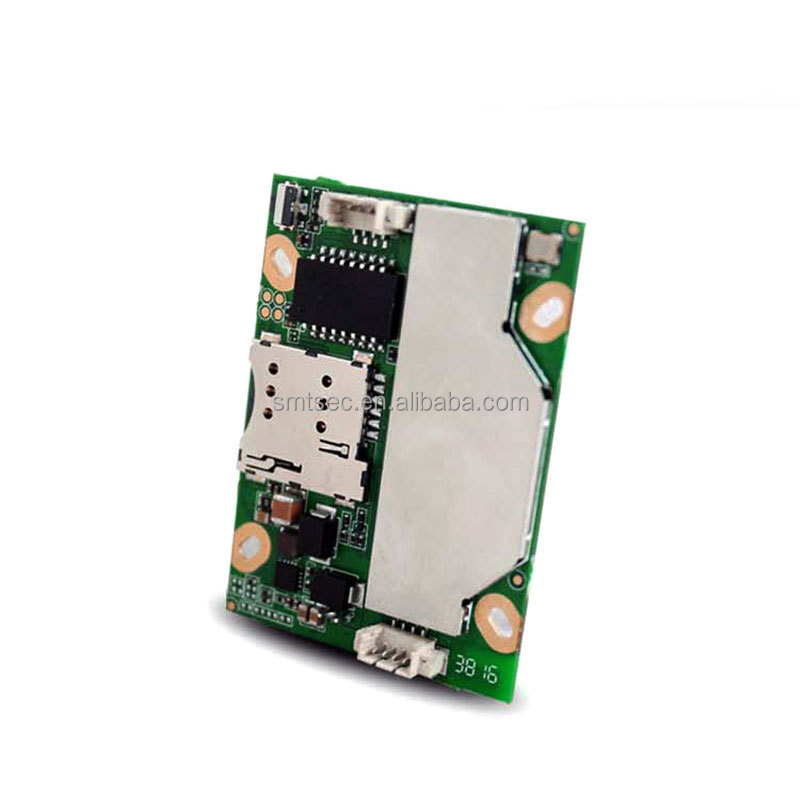

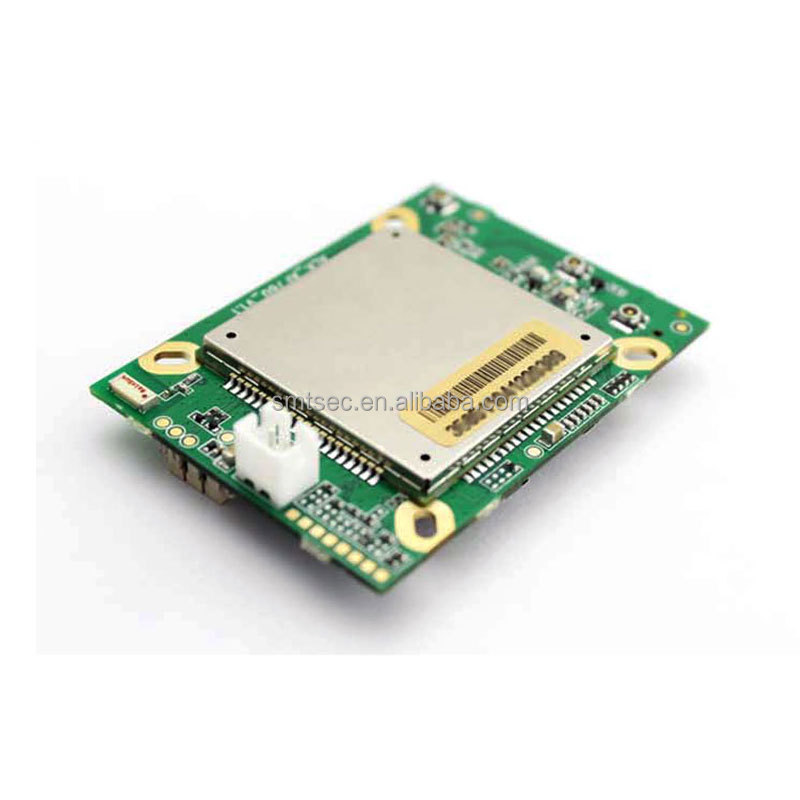

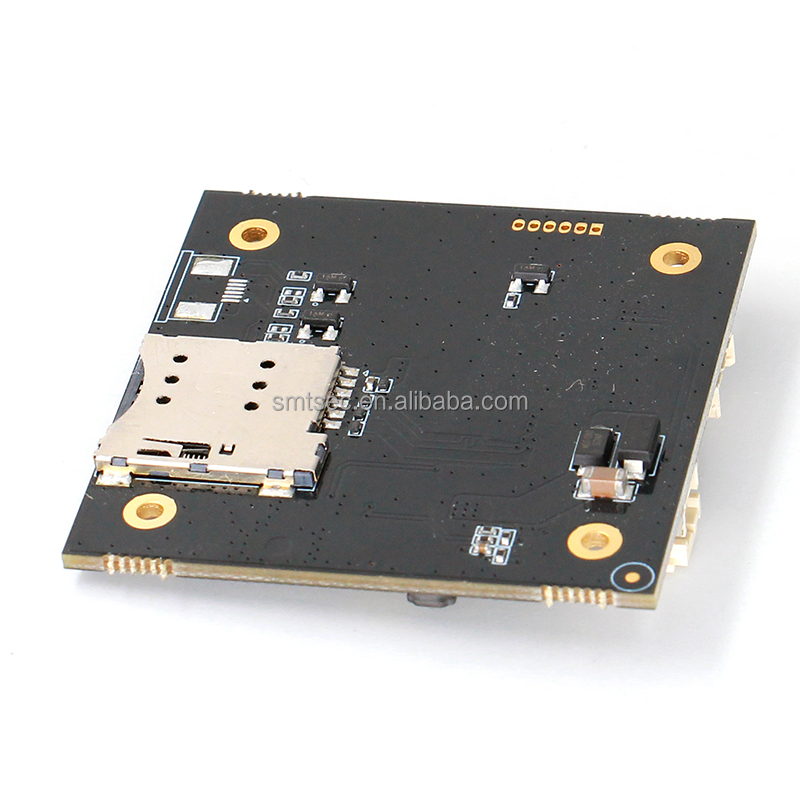

4GBoard:K4G
Support4G
Support4GCat.1,rateupto10Mbps
>ExpansionviaUSBinterface
>Support4G
4GBoard
Industrialgrade4Gmodule
Support4G/3G/2G+WiFiwirelessaccess;
4Gwirelesstransmissionrateofthelargest150Mbps;
Cansupportupto8usersaccessWiFihotspots;
Supportmobile/Unicom2G,3G,4G;telecommunications4G;
Precautions:
Defaultexpansionthroughthenetworkport
DriversupportisrequiredifyouneedtouseUSBextensions

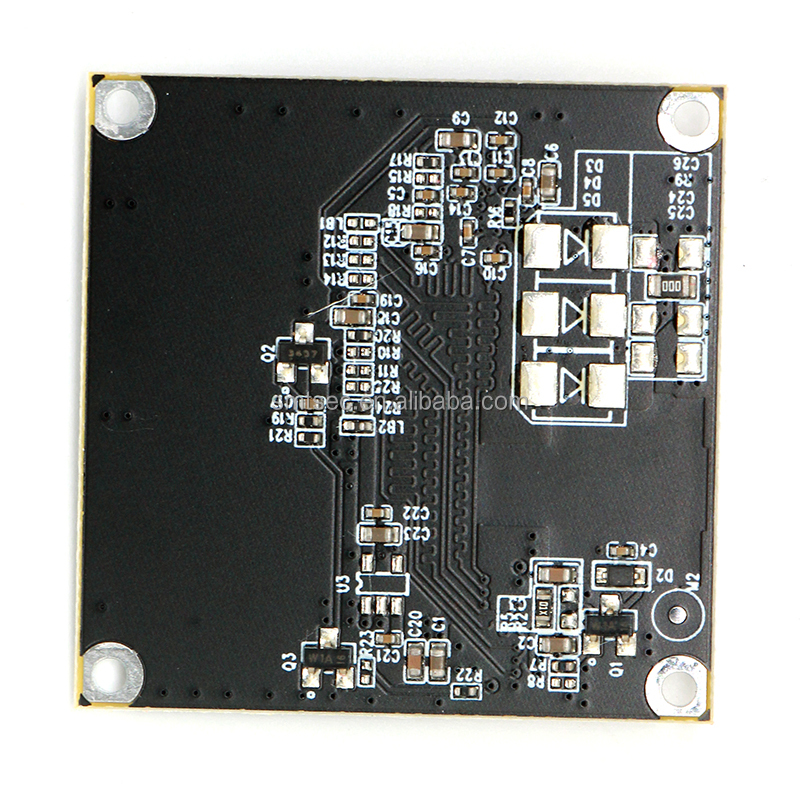

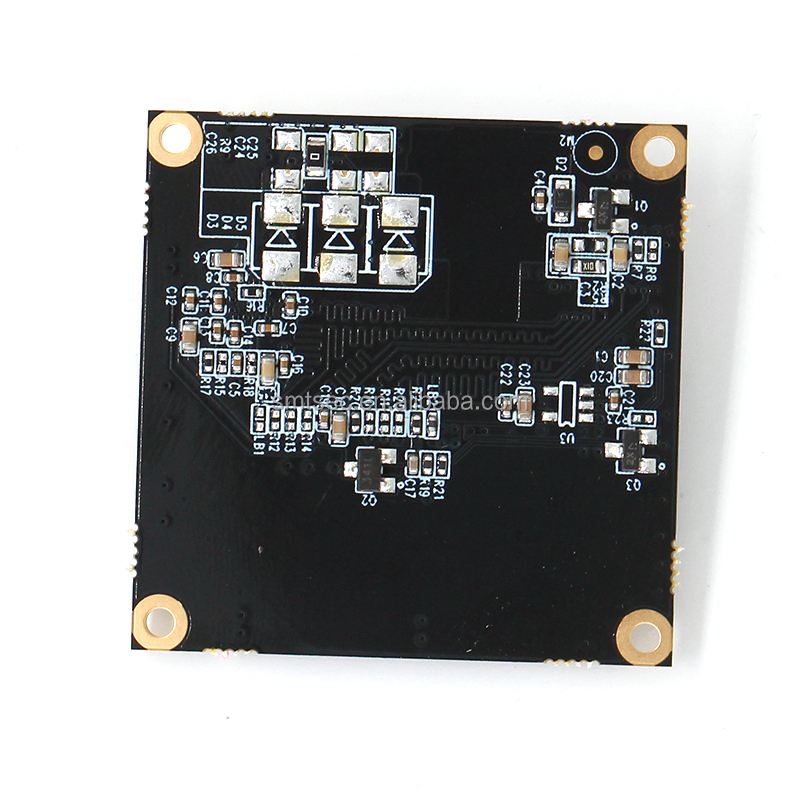

ThePOEModule(Optional):
38X38mmPoEmoduleIEEE802.3af/atprotocol
POEpower:12W(12V/1A)
POE:1,2+/3,6-and4,5+/7,8-adaptivetransmission
TheWiFiModule(Optional):
80mW,WIFImodule(3dBicontainingsmallantenna,feeder,SMAinterface),IPEXantennainterface,support802.11BGN
>SupportSIP-ESeries
>IPmoduleUSBinterfaceexpansion
>UseWIFIfunction,youcannotuseUSBstorage
Model:SIP-K585U
>IMX585+SSD3403
>1/1.2"SONYCMOS,8.0mp60fps
>H.265+/H.265/H.264/MJPEG
>DWDR,3DNR,LensCorrection,WB
>ONVIF,API,SDK,GB28181,CGI,RTSP
>Supportsthreestreamsandmultipleresolutions
>SupportforSMARTLEDs
>Adjustableshutter,image,menu,etc.
>Supportaudio,USB,UART,Reset.
>SupportRS485,AutoIRISLens
>Supportcharacteroverlay
>SupportGoogleChrome
>Mobilephonemonitoring(optional);
>Supportcustomdevelopment
>HDMIOutput(optional)
ModelSIP-K585U
CameraTypeH.2654K8.0mpSuperStarlightIPCameraModule
Camera
ImageSensor1/1.2"SONYIMX585CMOSSensorSTARVIS2
EffectivePixels3840(H)×2160(V)approx.8.29Mpixel
DSPSSD3403(GK7608V100/SS928V100),Quad-coreARMCortexA551.2GHz,4TopsINT8
Min.IlluminationColor:0.0001LuxF1.2(AGCON),B/W:0Lux(IRON)
S/NRatio≥50dB(AGCOFF)
LensMountCMount
Ir-CutSupport
Day/NightColor/B&W/Auto
SmartIR/whitelightSupport
LightmodeLowLevel/HighLevel/PWM
WDR≥120dBWDR
3DNRSupport
TonalAvailabletoset
BrightnessAvailabletoset
SharpnessAvailabletoset
ContrastAvailabletoset
SaturationAvailabletoset
GammaAvailabletoset
BLCAvailabletoset
MirrorimageOpen/Close
FlipOpen/Close
HLCOpen/Close
VideoFormatPAL/NTSC
LensCorrectionOpen/Close
DehazeOpen/Close
ExposureStrategyHighlightPriority/LowLightPriority/Auto
ExposureModeAuto/Manual
AutoExposureTimeAuto/Manual(1/12s-1/8000s)
SlowShutterOpen/Close
GainModeAuto/Manual
WhiteBalanceModeAuto/Manual/WhiteBalanceSceneAdjustable/WhiteBalanceStyleAdjustable
OSDSettingsCodestreaminformation/displayweek/displaytime/channeltitle/watermarkoverlay
OSDDisplayColor/size/positionadjustable
Video/Audio
VideoCodingH.265+/H.265/H.264
EncodingSchemeBaseline/MainProfile/HighProfile
ResolutionMainstream:3840X2160(1-60fps),2880X1620,2560X1440,1920X1080(1-60fps)
SubStream/ThreeStreams:D1,VGA,(1-60fps)
FrameRate1-60fps
BitRate32Kbps-16Mbps
BitrateTypeSupportVBR/CBR
AudioCompressionG.711U/G.711A/G.726/AAC
AudioInputModeMicIn/LineIn
AudioInputGainAvailableToSet
AudioOutputGainAvailableToSet
EchoOpen/Close
Network
DataStorageVideoRecord,PictureFormat
TriggerManual,automatic(motiondetection,alarm,time)
AlarmDataTransmissionWebsocket,FTP,Browser
NetworkProtocolHTTP,HTTPS,TCP/IP,UDP,RTP,FTP,RTCP,RTSP,NTP,DHCP,DNS,DDNS,SNMP,SSL/TLS,UPNP,PPPOE,etc.
TransferProtocolONVIF/GB28181/SDK/CGI
NumberOfClientVisitsSupport8UsersLoginAtTheSameTime
BrowserIE/Edge/Chrome/Firefox
NetworkLostRecordingSupports
MotionDetectionSupports4Area
HideDetectSupports4Area
Interface
NetworkInterface100M/1000MAdaptiveEthernetPort
AudioInput1ChAudioInput
AudioOutput1ChAudioOutput
USBinterface1USB2.0interface(5Vpowersupply),supportextended4G/WiFifunction
Uartport1Ch
ResetinterfaceSupport
RS4851Ch
AutoIRISLensSupport
SmartPhoneiPhone,iPad,Android
TFstoragefunctionMaximumSupport512G
CVBSOutput1CHCVBSOutput
HDMIOutput1CHHDMIOutput
WifiSupport802.11bgn
4GFunctionSupport4GCat.1,rateupto10Mbps
POEIEEE802.3af/at
SmartfunctionSupporthumanoiddetection/areaintrusion/flamedetection/electricvehicledetection/licenseplatedetection
FunctioncustomizationSupportfunctioncustomizationdevelopment,platformprotocoldocking,
algorithmcustomizationtransplantation,hardwareandsoftwaredevelopment
General
PowerSupplyDC12V1A
PowerConsumption<3W
WorkingEnvironment-20°C~+60°C,LessThan90%Rh
ProductSize(L/W/H)38X38+50X50mm
NetWeight0.1Kg
4kindsTFBoard(Optional)
1.KTF-S
ExpansionTFCard,
Support256GTFCard
ExpansionviaSDIOinterface
SupportKseriesmodulefunctionexpansion
2.KTF-SA
ExpansionTFCard,
Support256GTFCard
Supportalarminput/output
ExpansionviaSDIOinterface
SupportKseriesmodulefunctionexpansion
3.KTF-U
ExpansionTFCard,
Support256GTFCard
SupportUSB*2
ExpansionviaUSBinterface
SupportKseriesmodulefunctionexpansion
4.KTF-UW
ExpansionTFCard
Support256GTFCard
SupportWifi
SupportUSB*2
ExpansionviaUSBinterface
SupportKseriesmodulefunctionexpansion
4GBoard:K4G
Support4G
Support4GCat.1,rateupto10Mbps
>ExpansionviaUSBinterface
>Support4G
4GBoard
Industrialgrade4Gmodule
Support4G/3G/2G+WiFiwirelessaccess;
4Gwirelesstransmissionrateofthelargest150Mbps;
Cansupportupto8usersaccessWiFihotspots;
Supportmobile/Unicom2G,3G,4G;telecommunications4G;
Precautions:
Defaultexpansionthroughthenetworkport
DriversupportisrequiredifyouneedtouseUSBextensions
ThePOEModule(Optional):
38X38mmPoEmoduleIEEE802.3af/atprotocol
POEpower:12W(12V/1A)
POE:1,2+/3,6-and4,5+/7,8-adaptivetransmission
TheWiFiModule(Optional):
80mW,WIFImodule(3dBicontainingsmallantenna,feeder,SMAinterface),IPEXantennainterface,support802.11BGN
>SupportSIP-ESeries
>IPmoduleUSBinterfaceexpansion
>UseWIFIfunction,youcannotuseUSBstorage
Packaging&Shipping
ChinaPost(10-30days)
EMS(5-15workingdays)
DHL(3-5workingdays)
UPS(3-5workingdays)
•Themostreliable,affordablewayofshippingmethoddepondsonyouraddress.
•Onlinetrackingnumberwillbeemailedtobuyerthroughemail.
•Wedonttakeanyresponsibilityforanycustomdelay.
EMS(5-15workingdays)
DHL(3-5workingdays)
UPS(3-5workingdays)
•Themostreliable,affordablewayofshippingmethoddepondsonyouraddress.
•Onlinetrackingnumberwillbeemailedtobuyerthroughemail.
•Wedonttakeanyresponsibilityforanycustomdelay.
OurServices
•Allproductshavebeencheckedandpackagedingoodconditionbeforedispatch.
•Allproductshave1yearwarranty.

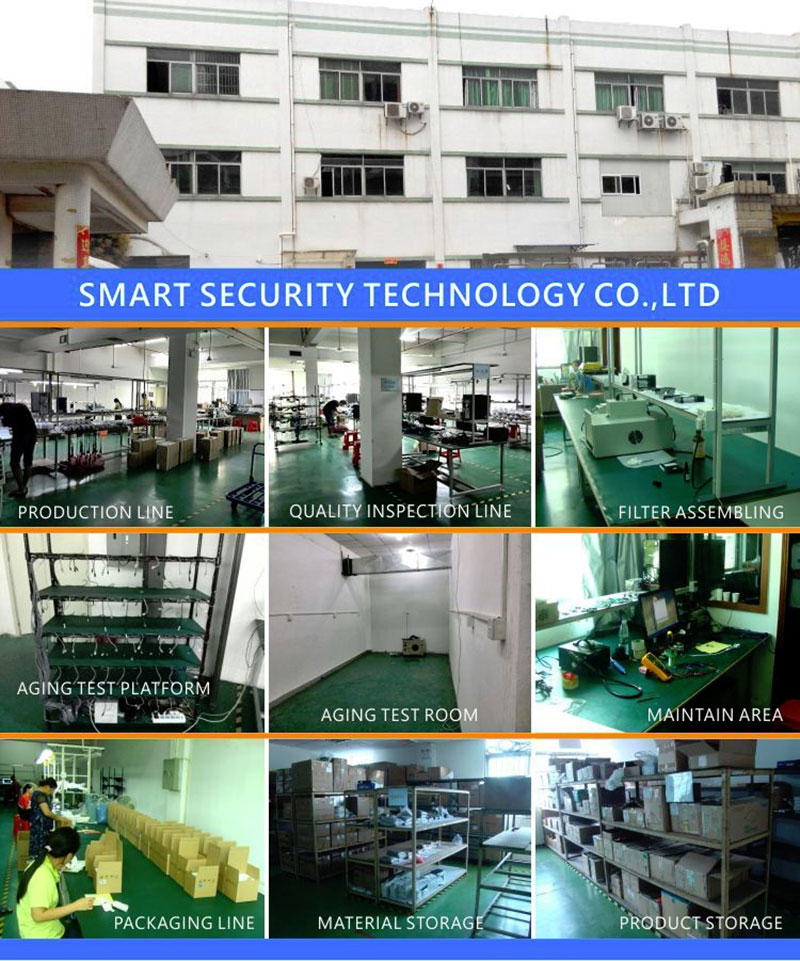

CompanyInformation
